Packaging Specs

• Width size range from 43 mm to 203 mm.
• Width tolerance is – 0, + 1 mm.
• The length of the roll is from 6,200 meters (20,000 ft) up to 18,600 meters (60,000 ft).
• The length tolerance is +/- 500 feet.
• There can be maximum two splices per roll.
• 76 mm diameter cores are required.

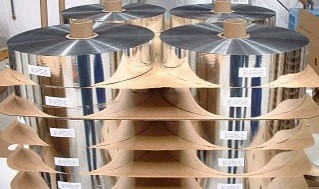

• Corrugated dividers between layers (paper or chip board, no foam).
• Corona treatment is OK, but not required. If there is corona treatment, it must be wound outside and labeled as “Corona Treated Side Out.”
• Each roll is labeled on the outside layer and the inside of the core.

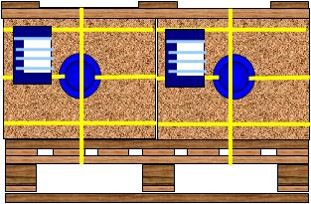

• 45″ (1145mm) by 45″ (1145mm) (Maximum) pallets are used.
• Splice specification: Double butt splice with 2″ red or clear tape.
• Stacked on 70mm tubes to prevent columns of rolls from shifting.
• No telescoping or edge weaving is allowed.
• Each pallet contains a pallet label.
